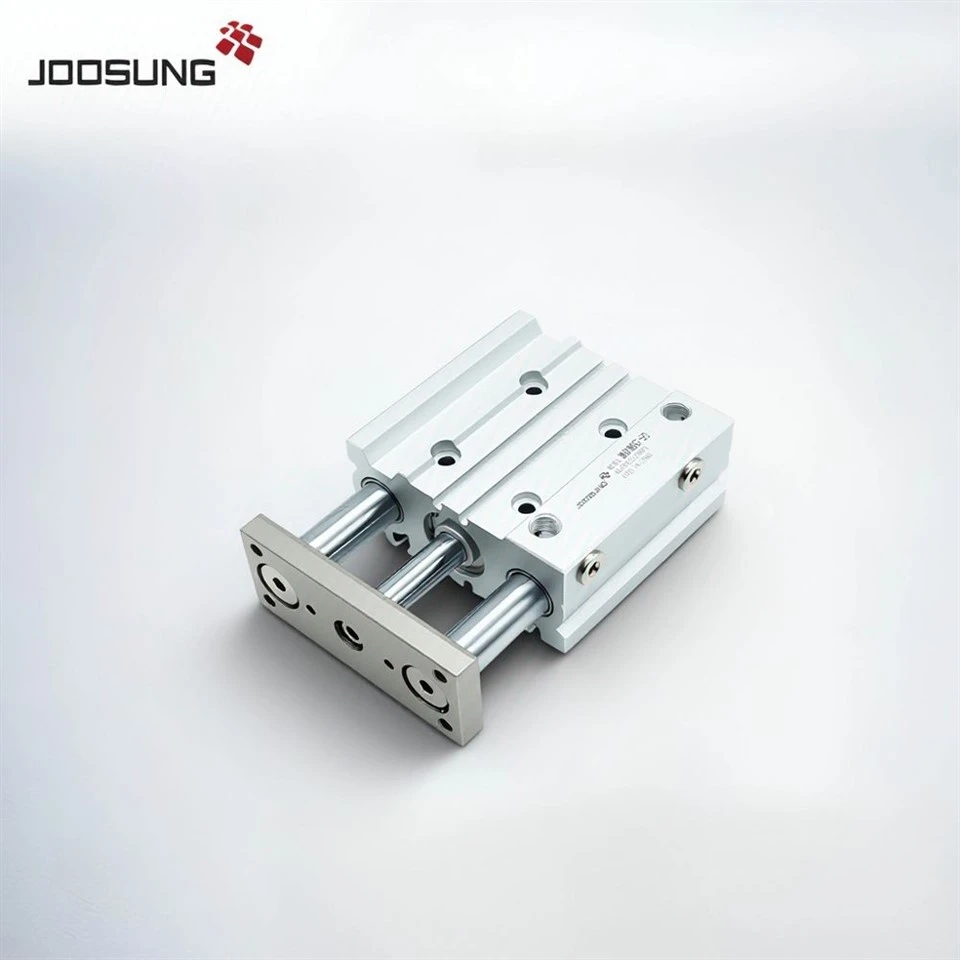

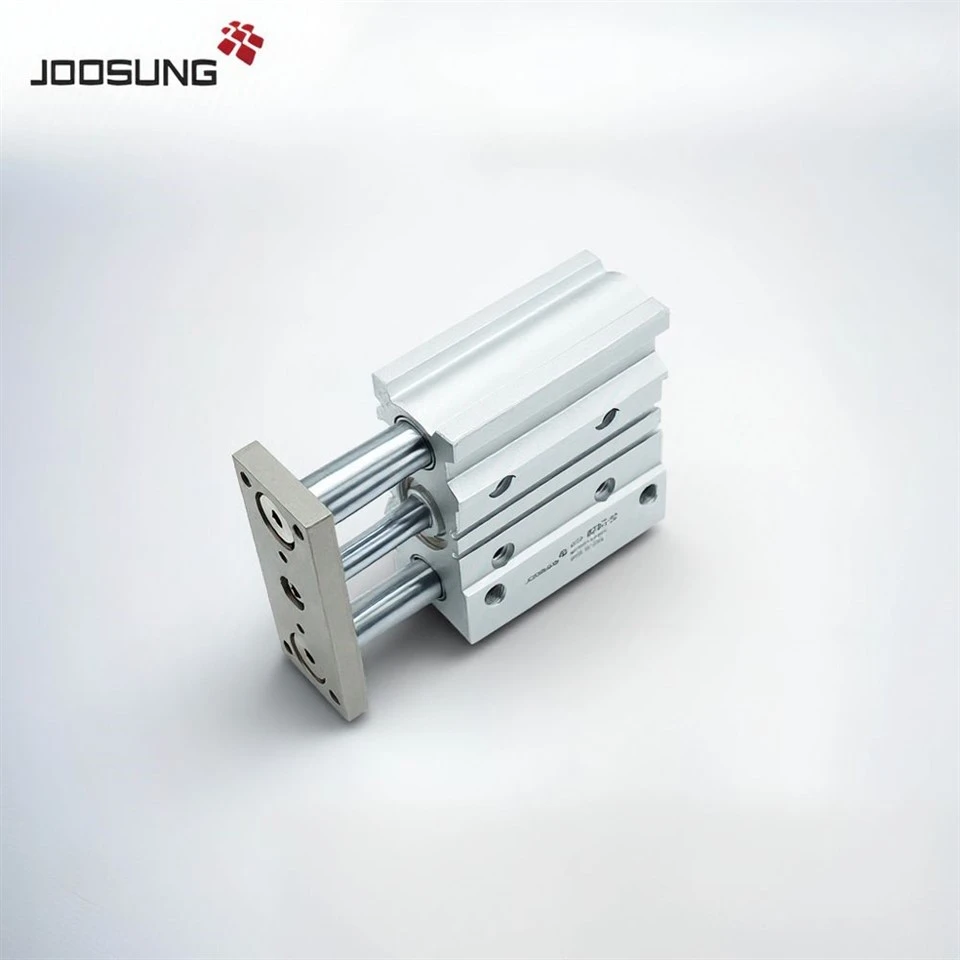

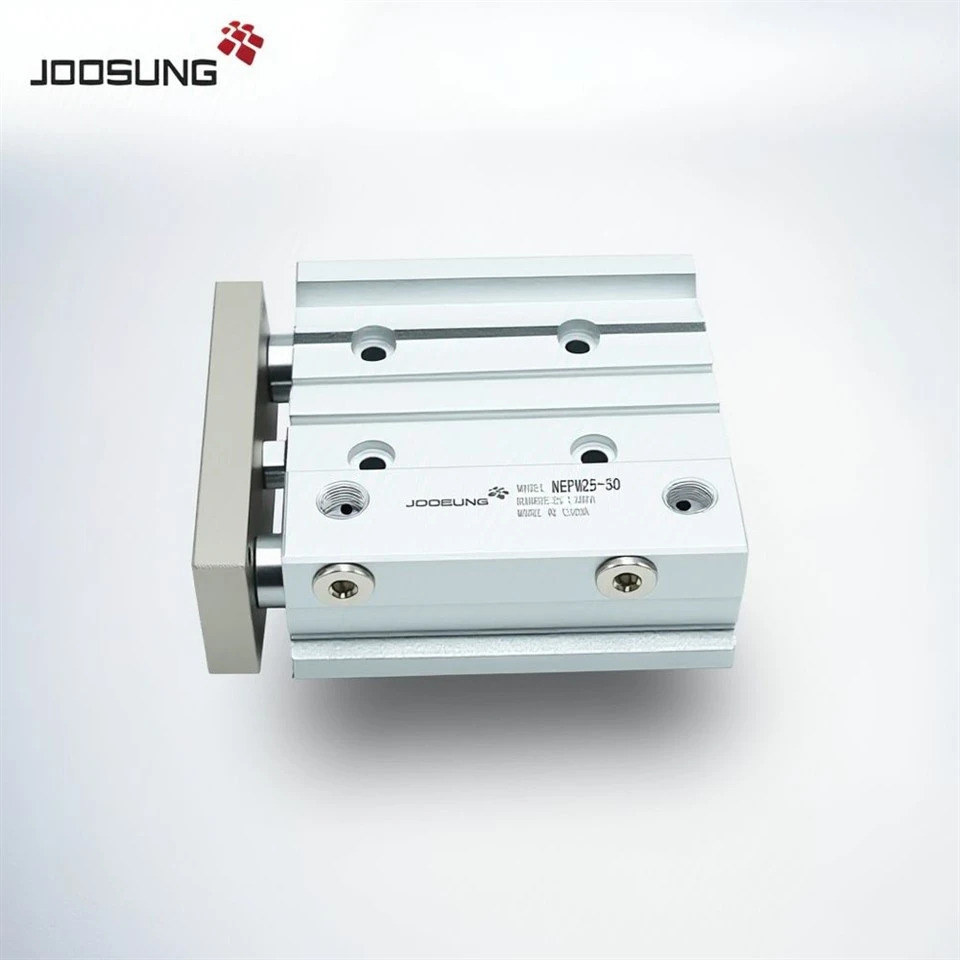

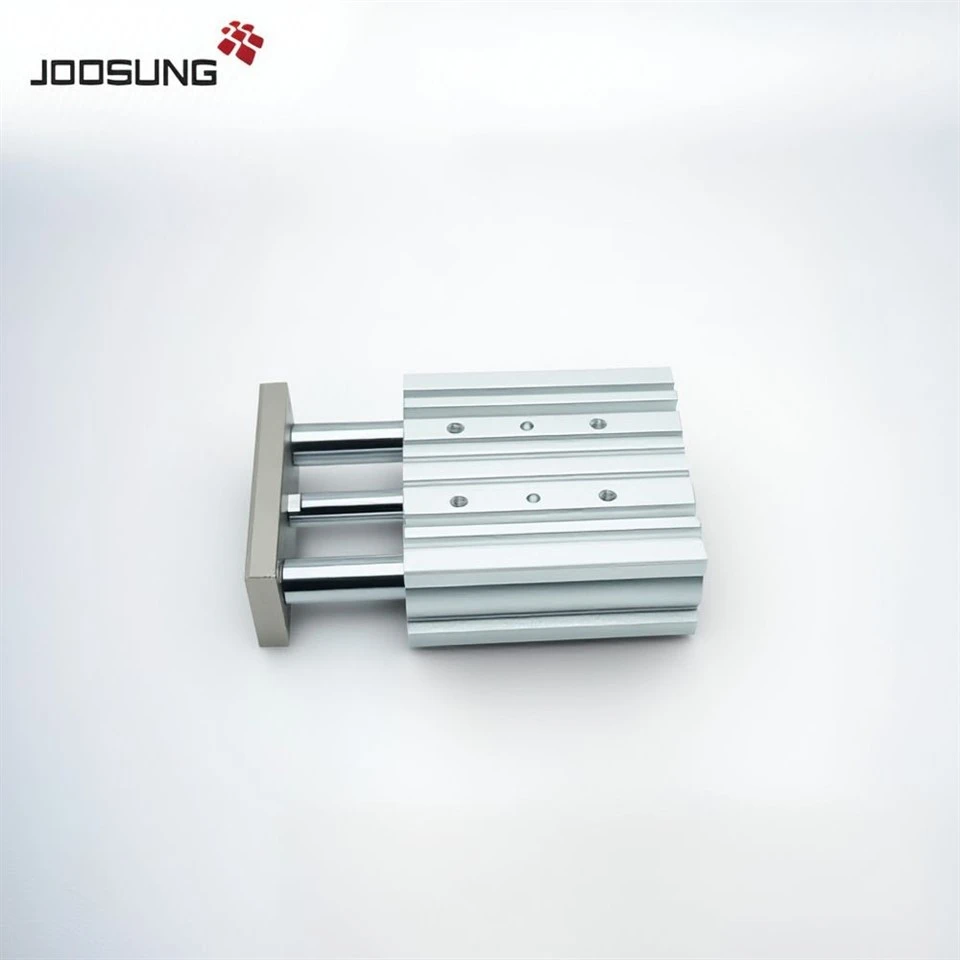

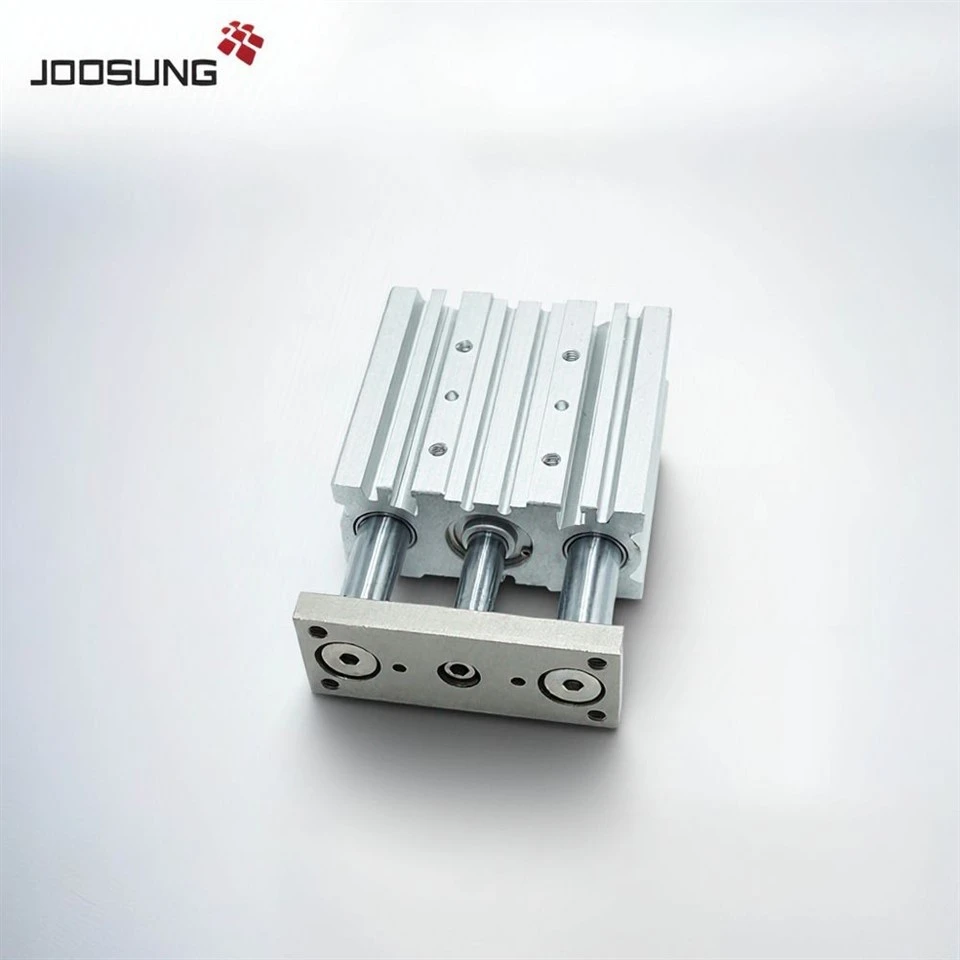

AngSerye ng MGPMay isang space-savingcompact guided pneumatic cylindermay atriple-rod structure, ininhinyero para sa mga application na nangangailangan ng mahusaylateral load resistance, tumpak na linear na paggalaw, atmatatag na gabaysa masikip na mga puwang sa pag-install. Kasama nitopinagsamang guide rods at mga opsyon sa sliding o ball bearing, ang MGPM ay naghahatid ng natitirang tibay at maayos na operasyon sa ilalim ng side load o offset na mga kondisyon. Ang cylinder na ito ay mainam para sa pag-clamping, pagtulak, o pag-angat papasokmga automated na linya ng pagpupulong, robotics, packaging system, at pick-at-mga unit.
|
Paano mag-order ng MGPMSerye ng Pneumatic Cylinder |
||||
|
MGP |
M |
-32 |
-50 |
MT |
|
Uri ng Bearing |
Laki ng bore |
Stroke |
Sensor |
|
|
12 16 |
||||
|
M: Slide bearing |
20 25 |
D-Z73 |
||
|
32 40 |
||||
|
L: Ball guide bearing |
50 63 |
|||
|
80 100 |
||||
Naghahanap ng mataas na-katumpakan na cylinder para sa limitadong espasyo at mabigat na side load?
AngMGPM Series Triple-Rod Guided Cylinderaloktumpak na pagpoposisyon, mahusay na lateral load resistance, atmodular na disenyo ng pag-install- perpekto para sa mga modernong sistema ng automation.
Makipag-ugnayan sa amin ngayonpara sa mga datasheet, 3D CAD na modelo, at customized na mga quote!
|
Pagtutukoy |
|||||||||||
|
Bore(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
|
Operation Fluid |
Hangin |
||||||||||
|
Operasyon |
Double Acting |
||||||||||
|
Anti-presyon sa pagsubok |
1.5MPa(15.3kgf/cm²) |
||||||||||
|
Pinakamataas na Presyon ng Operasyon |
1.0MPa(10.2kgf/cm²) |
||||||||||
|
Min. Presyon ng Operasyon |
0.12MPa(1.2kgf/cm²) |
||||||||||
|
Ambient at tuluy-tuloy na temperatura |
5-+60 degree |
||||||||||
|
Bilis ng Piston |
50~500mm/s |
50~400mm/s |
|||||||||
|
Buffer |
Rubber Buffer |
||||||||||
|
Stroke Tolerance |
+15mm |
||||||||||
|
Lubrication |
Hindi-lub |
||||||||||
|
tindig |
Slidable bearing/Ball Bearing |
||||||||||
|
|
Slidable na tindig |
±0.08 degree |
±0.07 degree |
±0.06 degree |
±0.05 degree |
±0.04 degree |
|||||
|
bola tindig |
±0.10 degree |
±0.09 degree |
±0.08 degree |
±0.06 degree |
±0.05 degree |
||||||
|
Laki ng Rc Port Rc(PT) |
M5×0.8 |
1/8" |
1/4" |
3/8" |
|||||||
|
SeryeModelo |
Mga Magagamit na Modelo |
|
Serye ng MGPM12 |
MGPM12-5Z, MGPM12-10Z, MGPM12-15Z, MGPM12-20Z, MGPM12-25Z, MGPM12-30Z, MGPM12-35Z, MGPM12-40Z, MGPM12-45Z, MGPM12-50Z, MGPM12-55Z6, MGPM12-55Z |
|
Serye ng MGPM16 |
MGPM16-5Z, MGPM16-10Z, MGPM16-15Z, MGPM16-20Z, MGPM16-25Z, MGPM16-30Z, MGPM16-35Z, MGPM16-40Z, MGPM16-45Z, MGPM16-50Z, MGPM16-55Z6, MGPM16-55Z |
|
Serye ng MGPM20 |
MGPM20-5Z, MGPM20-10Z, MGPM20-15Z, MGPM20-20Z, MGPM20-25Z, MGPM20-30Z, MGPM20-35Z, MGPM20-40Z, MGPM20-45Z, MGPM20-50Z, MGPM20-55Z, MGPM20-55Z |
|
Serye ng MGPM25 |
MGPM25-5Z, MGPM25-10Z, MGPM25-15Z, MGPM25-20Z, MGPM25-25Z, MGPM25-30Z, MGPM25-35Z, MGPM25-40Z, MGPM25-45Z, MGPM25-50Z, MGPM25-55Z6, MGPM25-55Z |
|
Serye ng MGPM32 |
MGPM32-5Z, MGPM32-10Z, MGPM32-15Z, MGPM32-20Z, MGPM32-25Z, MGPM32-30Z, MGPM32-35Z, MGPM32-40Z, MGPM32-45Z, MGPM32-50Z, MGPM32-55Z2, MGPM32-55Z2, MGPM32-55Z3 MGPM32-70Z, MGPM32-75Z, MGPM32-80Z |
|
Serye ng MGPM40 |
MGPM40-5Z, MGPM40-10Z, MGPM40-15Z, MGPM40-20Z, MGPM40-25Z, MGPM40-30Z, MGPM40-35Z, MGPM40-40Z, MGPM40-45Z, MGPM40-50Z, MGPM40-55Z, MGPM40-55Z, MGPM40-55Z, MGPM40-55Z, MGPM40-55Z MGPM40-70Z, MGPM40-75Z, MGPM40-80Z |
|
Serye ng MGPM50 |
MGPM50-5Z, MGPM50-10Z, MGPM50-15Z, MGPM50-20Z, MGPM50-25Z, MGPM50-30Z, MGPM50-35Z, MGPM50-40Z, MGPM50-45Z, MGPM50-50Z, MGPM50-50Z, MGPM50-55Z, MGPM50-55Z, MGPM50-55Z, MGPM50-55Z MGPM50-70Z, MGPM50-75Z, MGPM50-80Z |
|
Serye ng MGPM63 |
MGPM63-5Z, MGPM63-10Z, MGPM63-15Z, MGPM63-20Z, MGPM63-25Z, MGPM63-30Z, MGPM63-35Z, MGPM63-40Z, MGPM63-45Z, MGPM63-50Z, MGPM63-55Z3, MGPM63-55Z3, MGPM63-55Z3 MGPM63-70Z, MGPM63-75Z, MGPM63-80Z |
|
Serye ng MGPM80 |
MGPM80-5Z, MGPM80-10Z, MGPM80-15Z, MGPM80-20Z, MGPM80-25Z, MGPM80-30Z, MGPM80-35Z, MGPM80-40Z, MGPM80-45Z, MGPM80-50Z, MGPM80-50Z, MGPM80-55Z, MGPM80-55Z, MGPM80-55Z, MGPM80-55Z MGPM80-70Z, MGPM80-75Z, MGPM80-80Z |
